COROLLA
A ride becomes more when it makes your arrival a reception, when it creates your impression before you get off. Be in a sense of respect & regard exalted as never before.
Combining the initial designs created in Turin, Italy with the development centered in Japan, the new Altis Cruisetronic is a sophisticated blend of beauty and technological advancement. It establishes a lasting impression. And a delightful driving experience.
EXTERIOR
Admiration is a compliment that every eye will carry when it looks up to you. Be in command of a vehicle that inspires you to go far ahead of prevalent standards of pride & prestige.
The new Altis Cruisetronic follows a new ‘Wide & Low’ design concept, with a significantly wider body, wider tread, and a bolder look. The dynamic proportions and the deeply contoured body refine the aerodynamics and overall stability of the car.
Innovative press lines and sweep cut pillars bring motion in the car even while it is parked. The sporty front headlamps express assertiveness, and the tail lamps blend in with the bumper conveying balance in design.

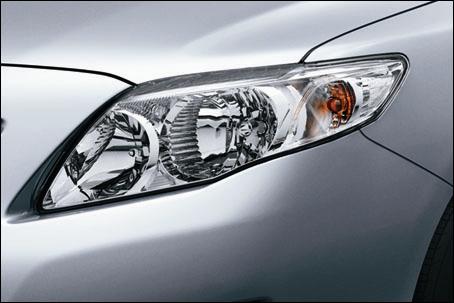

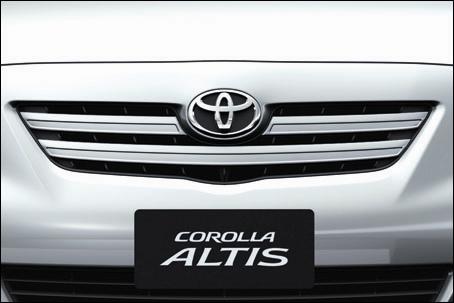

 The low placed radiator grille gives a stylish Floating look. |  The Sporty type Headlamps express Assertiveness. |

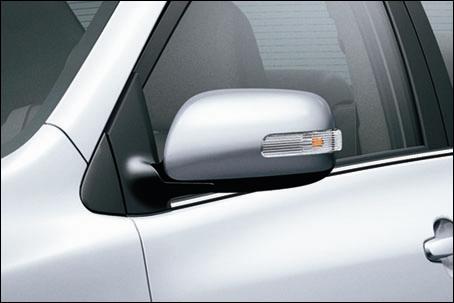

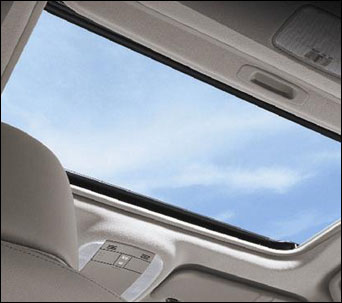

 Elegant Power Sunroof that lets you enjoy the beauty of the Sky at all times. |  Turn Signal Lamps integrated with side view mirrors. |
INTERIOR
The desire to challenge convention, stretch our own confines & move ahead of everything that limits us is natural to you. Take the seat that gives you a sense of unrestricted freedom.
The interior of the Altis Cruisetronic is based in a new Grege color scheme, which conveys a sense of balance and harmony. Ergonomically designed, the interior promises maximum comfort during travel.
Subtle but significant refinements in the Altis Cruisetronic delight you from the moment you enter the car. Illuminated entry, plush leather seats, flat rear floor and electric power steering are to name just a few of these refinements. The console and door trim is silhouetted in silver, and the wooden paneling and wooden shift lever express your sophistication.

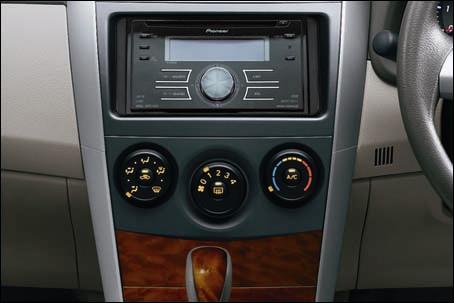

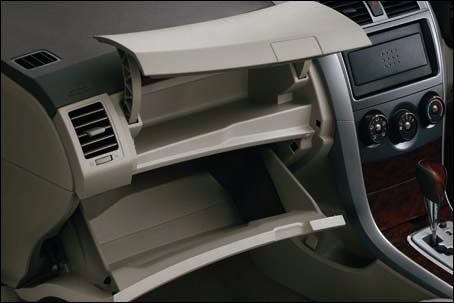

 Two separate Storage compartments on the dashboard. |  State of the art High Grade Audio System. |

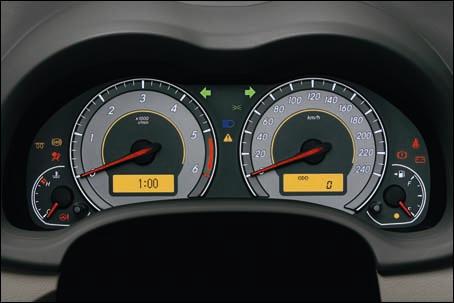

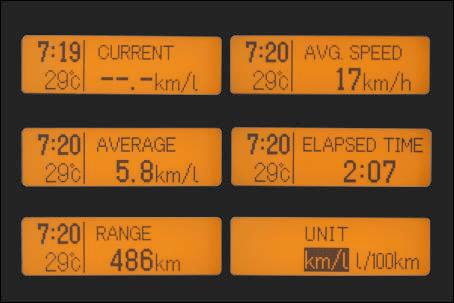

 Stylishly designed 4 dial Optitron Meter. |  Multi information digital display provides useful travel information. |
SAFETY
The car is as safe as iconic with its futuristic safety attributes that even take pedestrians into account. The GOA Body is stronger than all the 9 Generations it precedes & is designed to alleviate impact & minimize injury.
Safety goes beyond the structural designs to ensure maximum passenger protection. Included are SRS airbag, whiplash injury protection system, seat belts with pretensioner force limiter, ABS with EBD and Brake assist, and LED lamps.

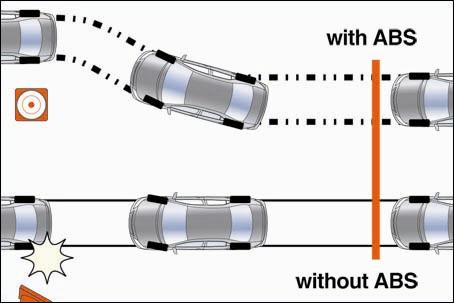

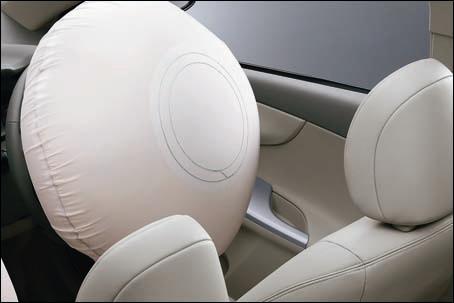

 The SRS Airbag minimizes impact in the event of collision. |  The Antilock Braking System ensures the car stays on the track when the driver appplies hard brakes. |

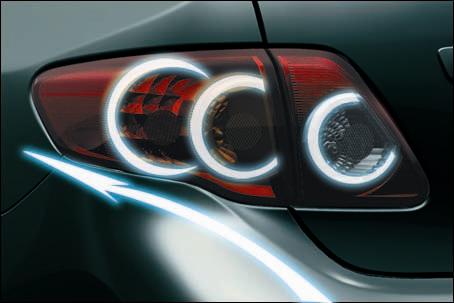

LED Tail lights provide better caution to vehicles behind.
PERFORMANCE
The touch of excellence goes down to every piston & ring to deliver a performance worthy of everything else this vehicle offers & give the Altis Cruistronic a might of its own.
The Altis Cruistronic is equipped with a powerful 1.8 liter, 4 cylinders DOHC, 16 valve VVTi engine. With a maximum output of 130 horsepower, the Altis Cruisetronic propels you with a might of its own.
The variable valve timing with intelligence and the super ECT functions optimize acceleration and fuel efficiency providing you with the power and economy at all speeds.

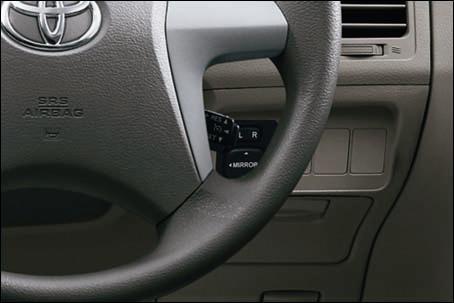

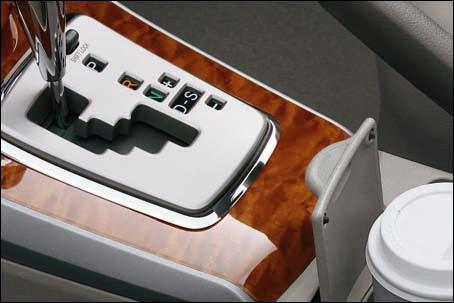

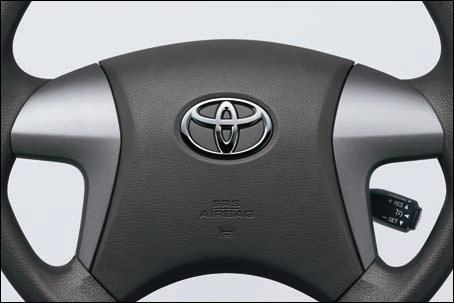

 Switchtronic allows you to choose between Automatic and Manual Transmission. |  Cruise Control adds to the performance & lets you stretch your legs on a long drive. |

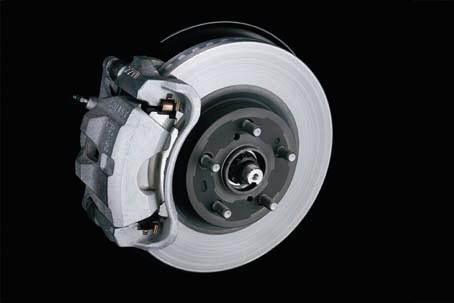

 Electronic Power Steering provides a delightful steering exprience. |  The larger disc brakes are designed to provide significantly more efficient braking performance. |
SPECIFICATION
ALTIS
| DIMENSIONS | ||||
| ALTIS M/T | ALTIS CRUISETRONIC | ALTIS M/T SR | ALTIS CRUISETRONIC SR | |
| Exterior: L x W x H (mm) | 4540 x 1760 x 1480 |
|||
| Interior: L x W x H (mm) | 1890 x 1450 x 1195 |
|||
| Wheel Base (mm) | 2600 |
|||
| Minimum Turning Radius (m) | 5.3 m |
|||
| ENGINE SPECIFICATIONS | ||||
| ALTIS M/T | ALTIS CRUISETRONIC | ALTIS M/T SR | ALTIS CRUISETRONIC SR | |
| Engine Type | 1 ZZ-FE |
|||
| Engine Displacement (cc) | 1794 |
|||
| Fuel System | EFI with VVTI |
|||
| Max. Output(SAE-NET) | 97 kW(130hp)/6000 rpm |
|||
| Max. Torque(SAE-NET) | 170 Nm/4200 rpm |
|||
| PERFORMANCE | |||||
| ALTIS M/T | ALTIS CRUISETRONIC | ALTIS M/T SR | ALTIS CRUISETRONIC SR | ||
| Transmission | 5 Speed MT |
4 Speed AT with Switchtronic |
5 Speed MT |
4 Speed AT with Switchtronic |
|
| Super ECT (Electronic Controlled Transmission) | No |
Yes |
No |
Yes |
|
| Brakes | Front |
Ventilated Disc |
|||
| Rear | Solid Disc |
||||
| ABS + Brake Assist + Electronic Brake Force Distribution | YES |
||||
| Suspension | Front | MacPherson Strut |
|||
| Rear | Torsion Beam |
||||
| Stabilizer Bar | Front/Rear |
||||
| Steering System | Electric Power Steering System |
||||
| Tire and Wheel | 195/65 R15 Alloy Rims |
||||
| Fuel Tank Capacity | 55 Liters |
||||
| Fuel Cut System | Yes |
||||
| EXTERIOR | ||||
| ALTIS M/T | ALTIS CRUISETRONIC | ALTIS M/T SR | ALTIS CRUISETRONIC SR | |
| Antenna | Glass Embedded Print Antenna |
|||
| Front Head Lamps | 4 Lamps Multi-reflector |
|||
| RearLamps | LED (Light Emitting Diode) Type |
|||
| Windshield Wipers with Diffusing Washer Type Nozzle | Intermittent |
|||
| High Mount Stop Lamp | YES |
|||
| Windshield | Green Laminated with Top Shade |
|||
| Mud Guard | Body Color |
|||
| Rear Garnish | Body Color |
|||
| Side Impact Bars | With |
|||
| Side Protection Moulding | Body Color |
|||
| Side Skirts | Extended |
|||
| Wheel | 15 Inch Alloy Rims |
|||
| INTERIOR | ||||
| ALTIS M/T | ALTIS CRUISETRONIC | ALTIS M/T SR | ALTIS CRUISETRONIC SR | |
| Interior Color Scheme | Grege |
|||
| Sunroof | NO |
YES |
||
| Seats | Fabric |
Leather Package |
||
| Rear Cabin Flat Floor | YES |
|||
| Keyless Entry | YES |
|||
| Illuminated Entry System | 4 Spoke Urethane |
|||
| Steering | Tilt and Telescopic |
|||
| Multi Information Display | YES |
|||
| Meter Illumination Control | YES |
|||
| Speedometer | Optitron km/h |
|||
| Tachometer | YES |
|||
| Gear Shift Lever | Leather |
Gate Type Lever: Leather + Sequential (Silver) |
Leather |
Gate Type Lever: Leather + Wood Sequential (Silver) |
| Wood Grain Finish | YES |
|||
| Audio | 2 DIN Audio with CD Player / AM-FM / MP3 |
2 DIN Audio with CD Player / AM-FM / MP3 (High Grade) | ||
| Speaker | 6 |
|||
| Sunvisor | Driver + Passenger (with vanity mirror) |
|||
| Rear Seat ArmRest with Cupholders | YES |
|||
| Center Console Box | w/ Lid + 2 Step |
|||
| Rear Headrest | Separate * 3 + Leather |
|||
| Central Door Locking | YES |
|||
| Power Windows | YES |
|||
| Digital Clock | YES |
|||
| SAFETY | |||||
| ALTIS M/T | ALTIS CRUISETRONIC | ALTIS M/T SR | ALTIS CRUISETRONIC SR | ||
| Key Reminder Warning | YES |
||||
| Light on Warning | YES |
||||
| Reverse Gear Warning | NO |
YES |
NO |
YES |
|
| Seat Belt | Front | Driver: 3 Point ELR, with Pretensioner and Force Limiter Passenger: |
|||
| Rear | 2 Passengers: 3 Point ELR Center Passenger: Non Retractable |
||||
| SRS Air Bag (Driver side) | YES | ||||
